The Alchemy of White Gold: Limoges Craftsmanship

March 28, 2026

Limoges Craftmanship

In the world of decorative arts, few names carry the weight of Limoges. To the uninitiated, it is a brand; to the connoisseur, it is a rigorous standard of excellence defined by a specific geography and a centuries-old mastery of fire and earth.

As a curator, one does not merely look at a piece of Limoges porcelain; one observes the successful conclusion of a high-stakes elemental drama. Since the discovery of kaolin near the village of Saint-Yrieix-la-Perche in 1768, this region of France has refined a process that transforms humble minerals into "white gold."

Below, we trace the meticulous journey from raw paste to the translucent masterpieces that grace the world’s finest collections.

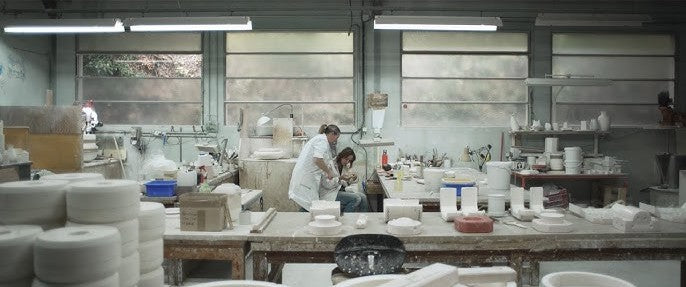

I. The Secret of the Paste: The Trinity of Earth

The brilliance of Limoges lies in its composition. Unlike "soft-paste" porcelain, Limoges is hard-paste porcelain, characterized by its strength and stark whiteness. This is achieved through a precise blend of three natural elements:

Kaolin: The essential white clay that provides plasticity and whiteness.
Feldspar: A flux that allows the mixture to vitrify (turn to glass) at high temperatures.
Quartz: The structural skeleton that ensures the piece maintains its shape.

II. Shaping the Form: Le Coulage and Le Calibrage

Once the minerals are milled and mixed into a liquid "slip" or a pliable dough, the artisan intervenes.

Slip Casting (Coulage): For complex shapes, think ornate soup tureens or delicate figurines, the liquid porcelain is poured into plaster molds. The plaster absorbs water, leaving a thin "skin" of clay against the walls.
Jiggering (Calibrage): For symmetrical items like plates, the clay is pressed into a rotating mold, a process requiring a steady hand to ensure uniform thickness.

III. Le Dégourdi: The First Trial by Fire

Before it can be decorated, the "green" porcelain must survive its first firing at approximately 980°C. This stage, known as the dégourdi, renders the piece porous and fragile. It is not yet the gleaming object we recognize, but it is now sturdy enough to be handled for the glazing process.

IV. The Luster of the Couverte

The signature sheen of Limoges is the result of the glaze (or couverte). Each piece is dipped—often by hand—into a vat of liquid glaze. The porous dégourdi body drinks in the liquid, leaving a powdery coating. In the heat of the final kiln, this powder will melt into a transparent, protective glass skin.

V. Le Grand Feu: The Transformation

This is the most perilous stage. The porcelain enters the kiln for the "Great Fire," reaching temperatures as high as 1400°C. At this heat, the body and the glaze fuse together. The piece shrinks by roughly 12-14%, a mathematical variable the artisan must calculate from the very beginning. If the temperature fluctuates even slightly, the piece may warp or crack, ending its journey before it truly begins.

VI. The Third Fire: Decoration and Gilding

For the finest Limoges, the process concludes with the Petit Feu. Here, master painters apply pigments and precious metals, often 24-karat gold or platinum.

Because these pigments cannot withstand the 1400°C heat, they are fired a third (and sometimes fourth or fifth) time at lower temperatures.
Gilding is applied with a brush and later "burnished" with an agate stone to achieve that deep, regal glow.

The Curator’s Perspective

When you hold a piece of Limoges to the light, you should see the shadow of your fingers through the porcelain. That translucency is the hallmark of a perfect vitrification. It is a testament to a process that refuses to be rushed by modern industry, maintaining a standard that has remained largely unchanged since the days of Louis XV.
